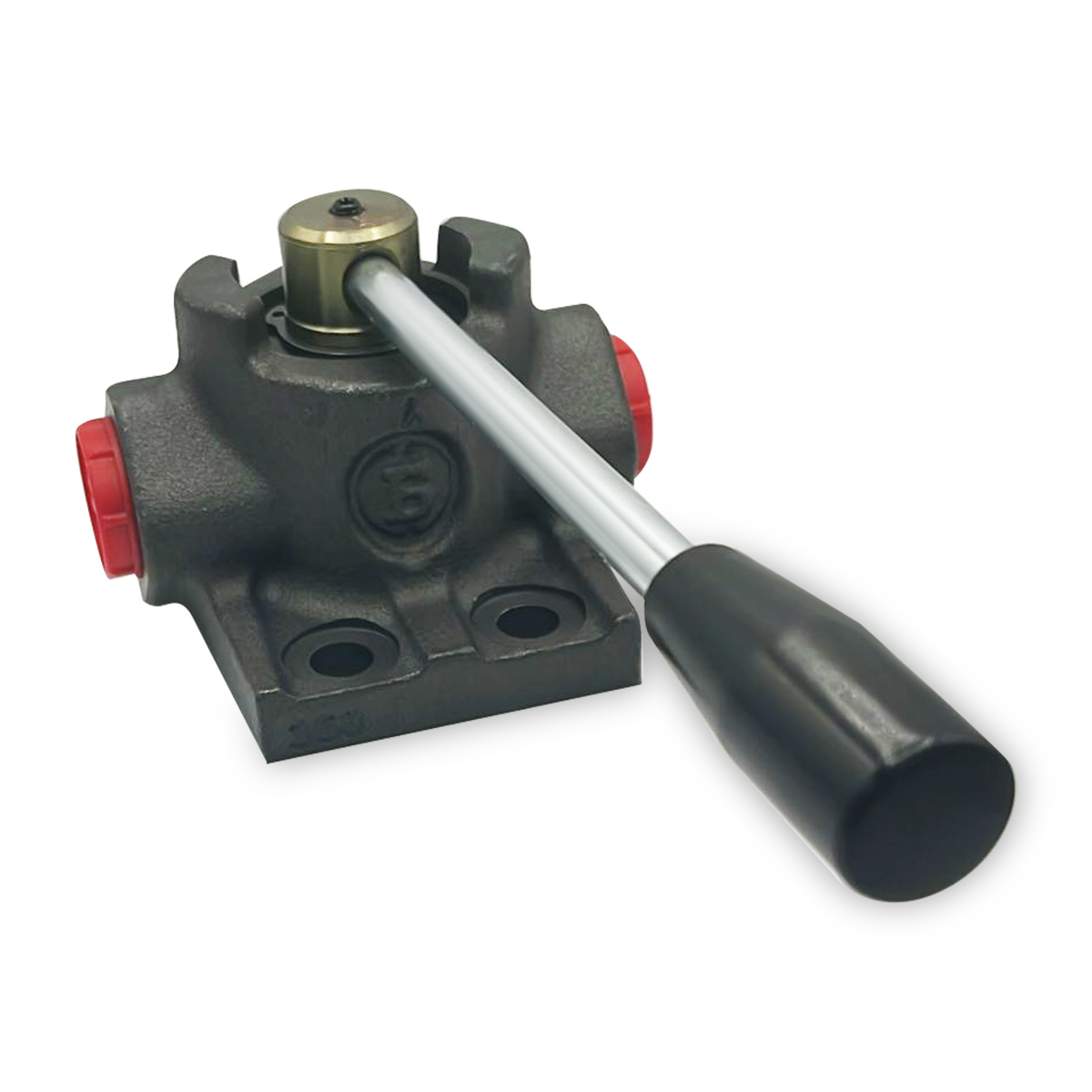

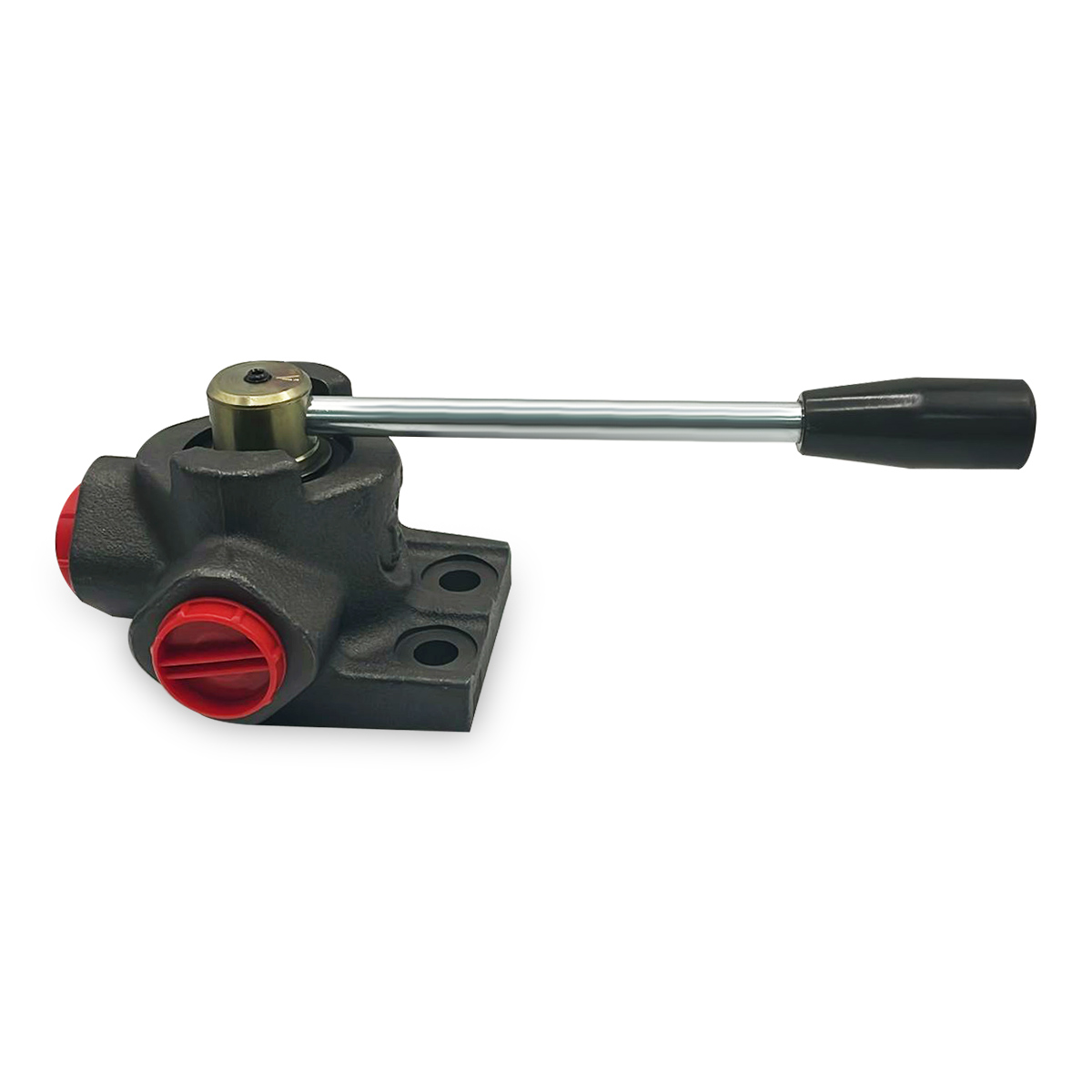

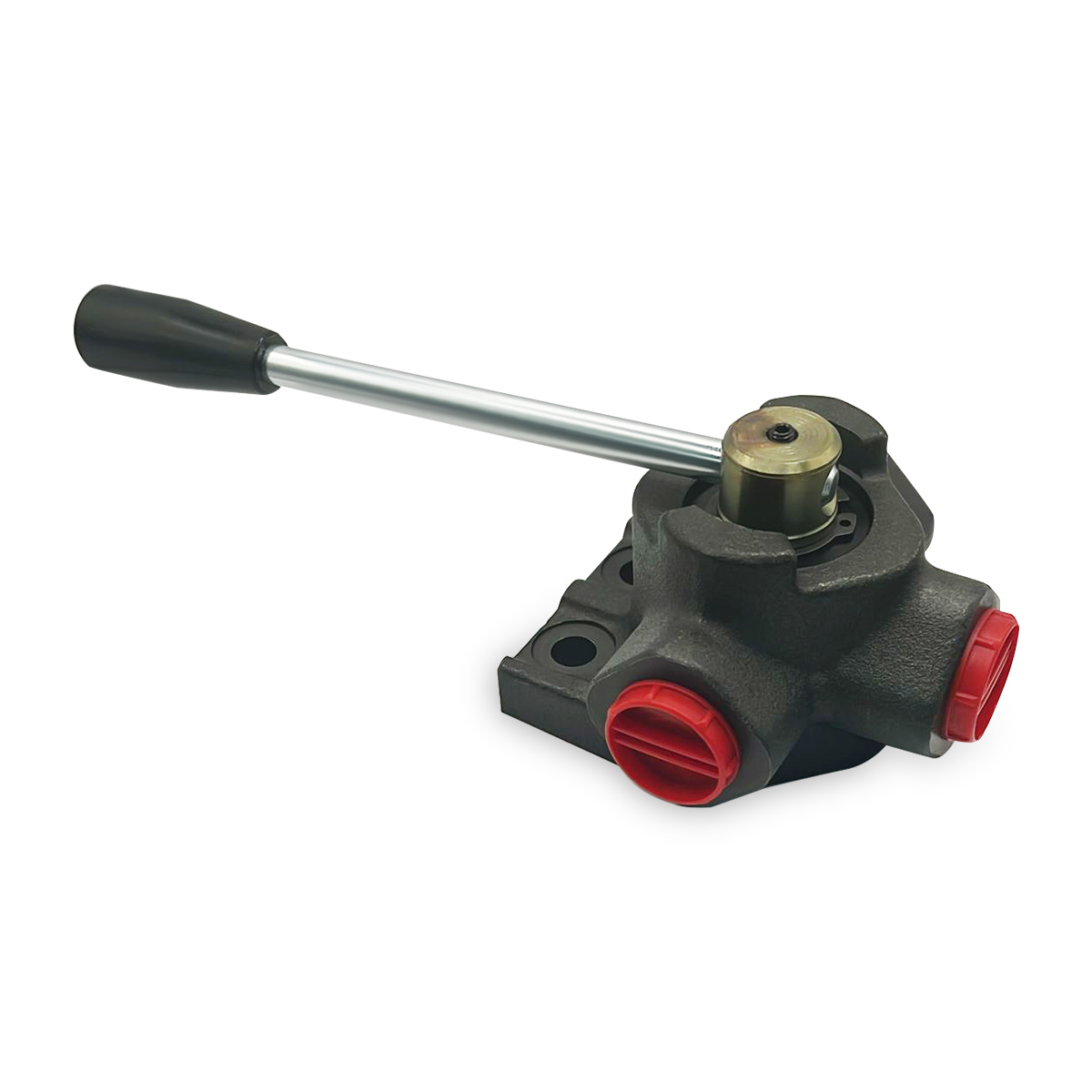

3 Way Hydraulic Rotary Diverter Valve, 1/2" NPT
$51.00
* Wholesale Discount is available for this product if you purchase 5 or more products.SKU: HV-DV-3W-2P-08N
| Flow : | 24 GPM | Pressure : | 3625 PSI | Working Ports : | 1/2" NPT | Brand : | Hydro-Pack | Weight : | 2 LBs |
|---|
Volume discounts
5+ PRICE EA -5%
$48.45
10+ PRICE EA -10%
$45.90
In stock
39 in stock
Description
3 Way Hydraulic Rotary Diverter Valve, 1/2″ NPT. It is used to divert the flow towards two different outlets.
Body: cast iron.
Internal parts: hardened and ground steel.
Seals: BUNA N standard.
Leakage: Minimal leakage.
CONNECTIONS:

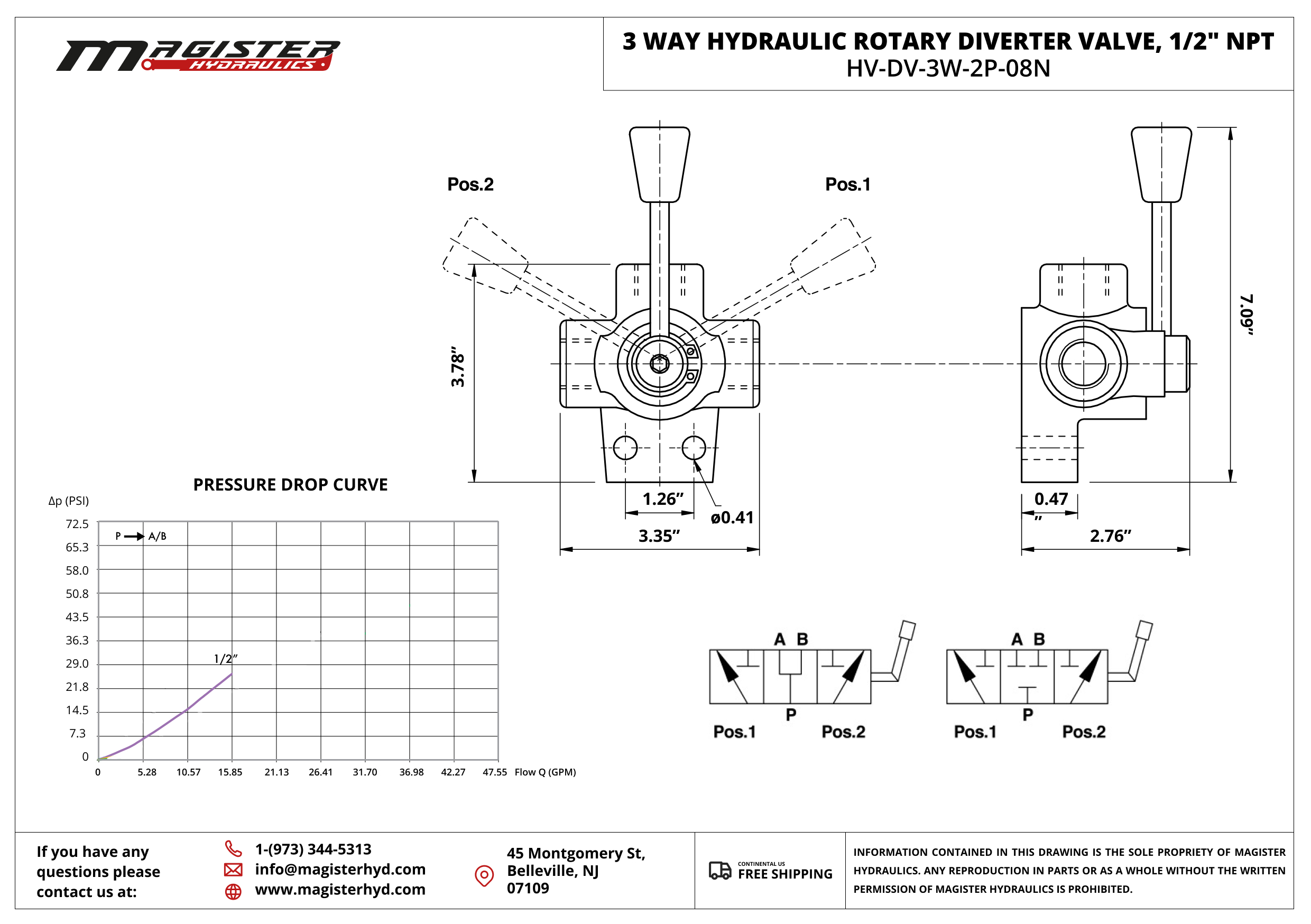

Connect P to the supply, A and B to the ports of
the hydraulic circuit where flow has to be diverted to. With lever in position 1 the flow is connected towards port A; with lever in position 2, the flow is connected towards port B. With lever in central position ports P, A and B are all connected (open centre).
Oil temperature: 122° F – Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe.
