1 bore x 12 stroke swivel eye hydraulic cylinder, welded swivel eye double acting cylinder | Prince Hydraulics

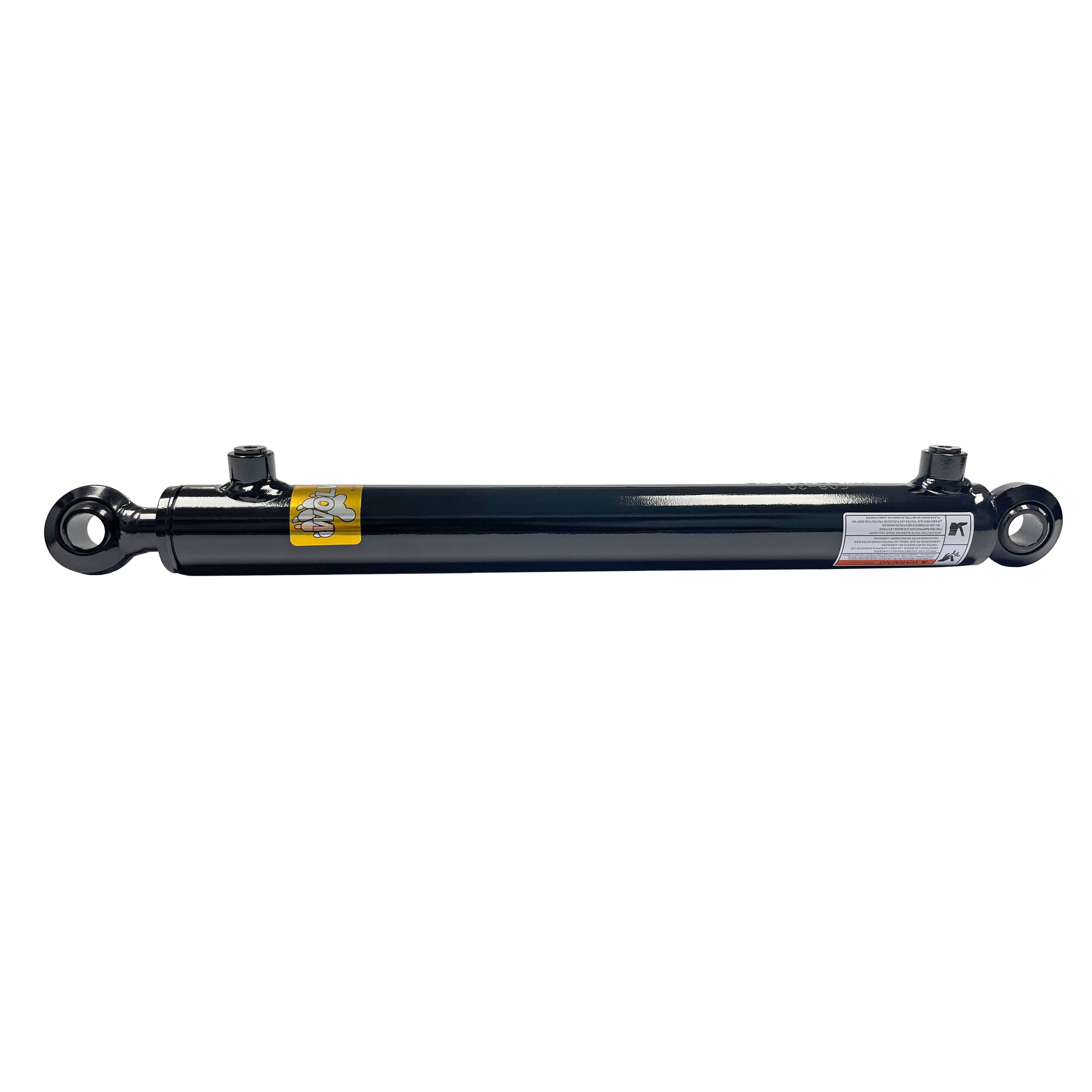

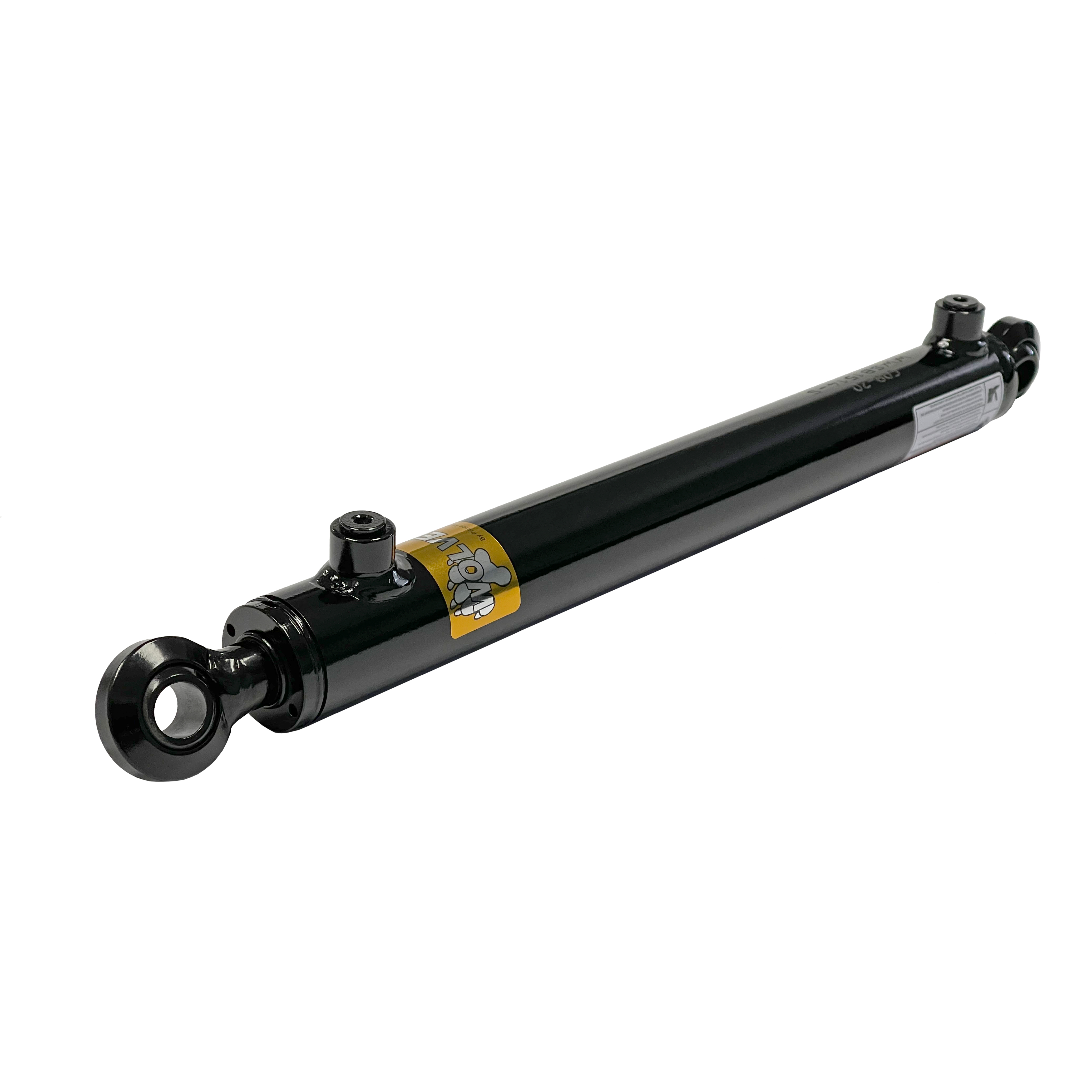

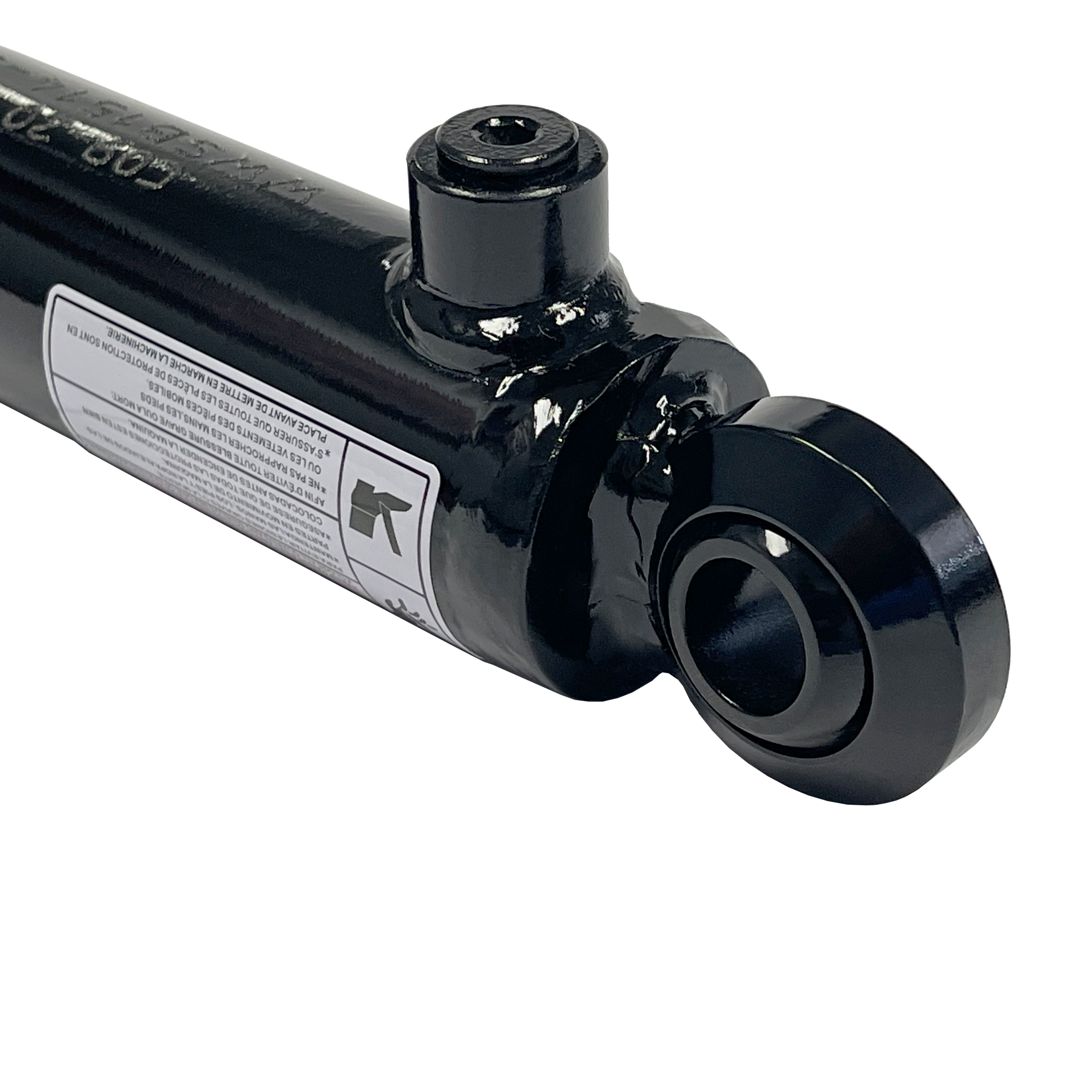

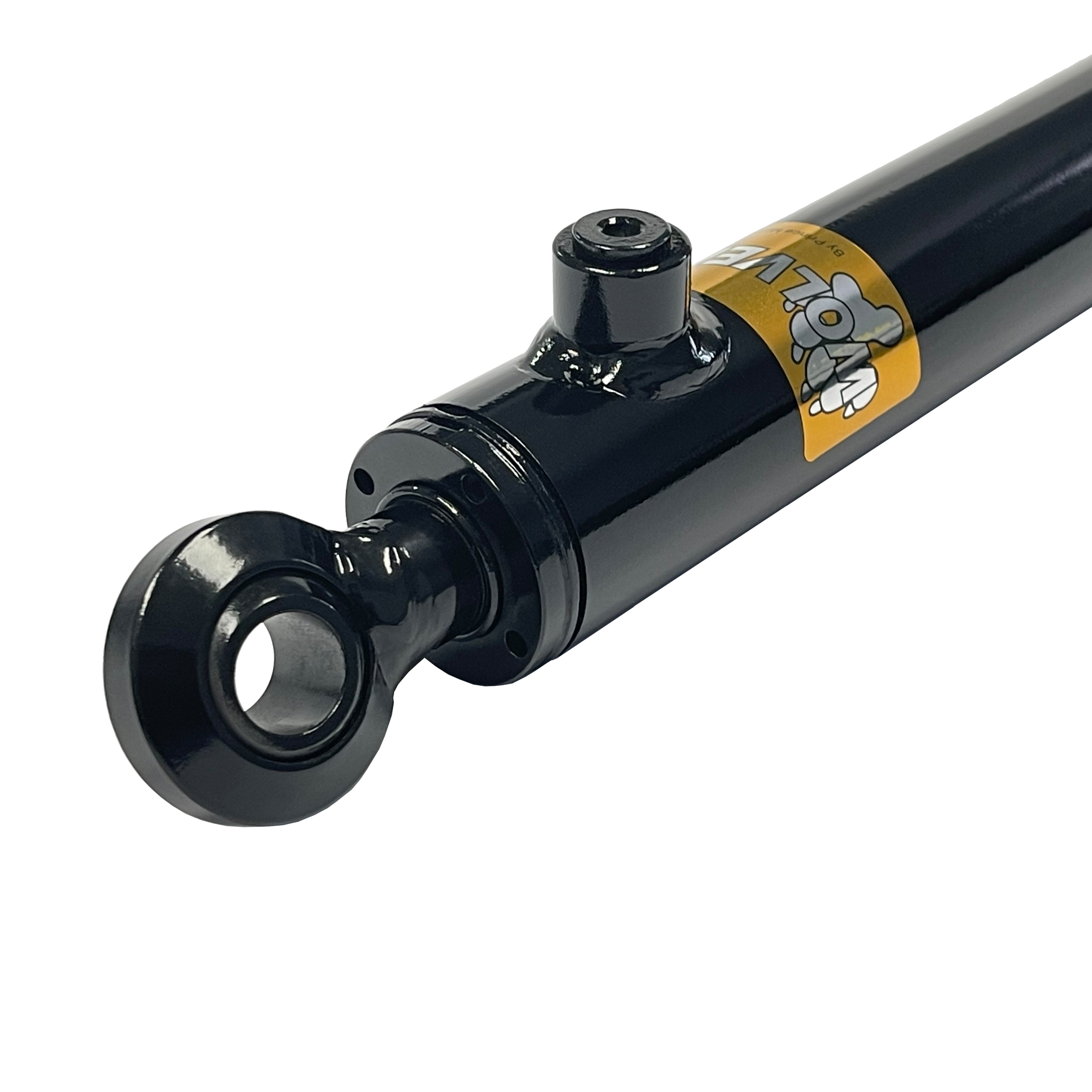

1" bore x 12" stroke Prince Swivel Eye hydraulic cylinder Wolverine Line

1" bore x 12" stroke Prince Swivel Eye hydraulic cylinder Wolverine Line

Name: 1" bore x 12" stroke Prince Swivel Eye hydraulic cylinder Wolverine Line
Brand: Magister Hydraulics
SKU: WWSB1012-S
Price: 162.15 USD
Availability: InStock
Rating: 5 (10 reviews)

$162.15

Pay in 4 interest-free payments of $40.54

SKU: WWSB1012-S

Bore :	1 in
Outer Dia. (⌀) :	1.38 in
Stroke :	12 in
Rod Dia. (⌀) :	0.625 in
Port Size :	SAE 6
Pin Dia. (⌀) :	0.5 in
Extended :	30 in
Retracted :	18 in
Pressure :	3000 PSI
Column Load :	2200 LBs
Oil Volume :	0.16 QTs
Brand :	Prince
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Spherical Bearings
Action :	Double Acting
Weight :	7 LBs
GTIN :	854335007742

SKU: WWSB1012-S Categories: 1" Bore Swivel Eye, Hydraulic Cylinders, Swivel Eye Hydraulic Cylinders

In stock

23 in stock

Description

1″ bore x 12″ stroke the Prince Hydraulics series Wolverine Swivel Eye hydraulic cylinder 3000 PSI. Heavy-duty hydraulic equipment, 1-year warranty, free ground Continental US shipping. Prince Manufacturing cylinders manufactured with high quality raw materials Precision finished ST52.3 steel cylinder barrels and polished chrome plated C1045 stell alloy rods, honed cold-drawn tubing, top quality piston seals. Excellent replacement for farming equipment and others.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
