The main causes of the hydraulic cylinder failure. |Magister Hydraulics

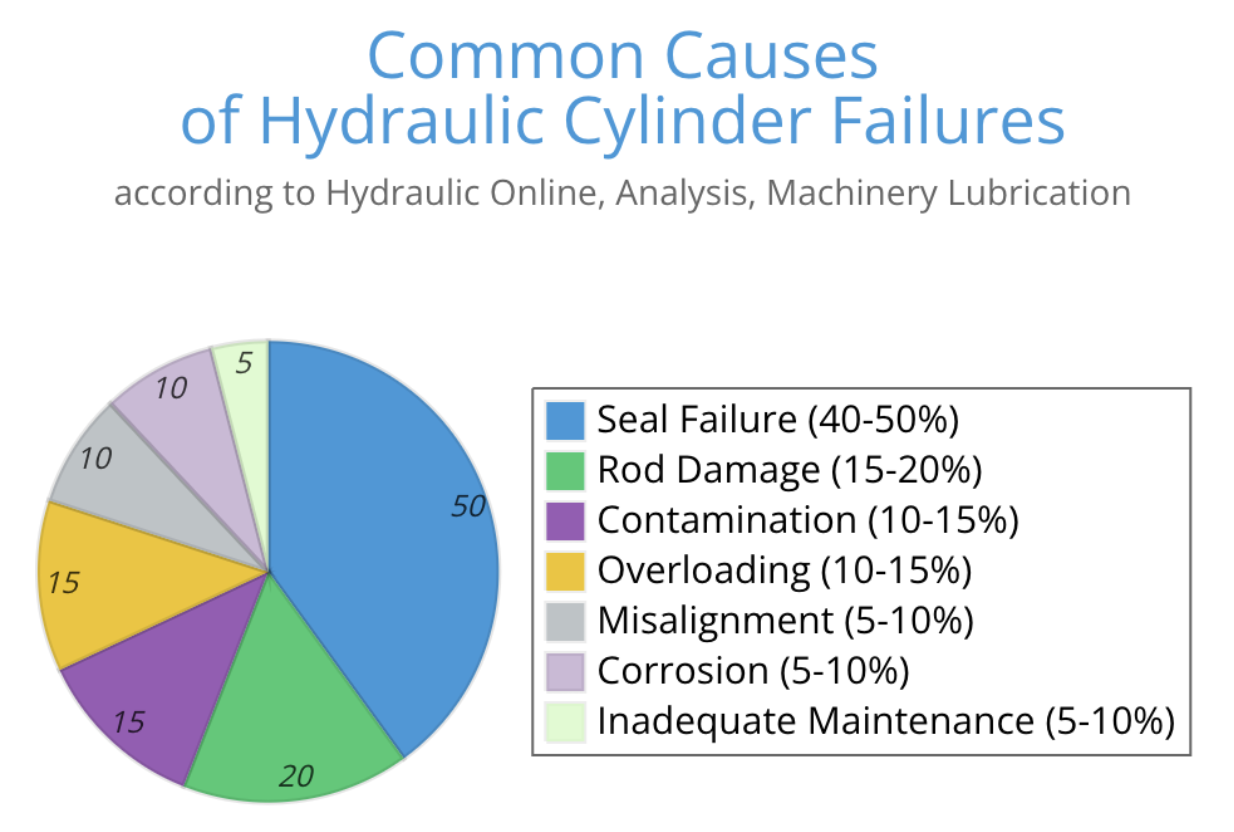

Hydraulic cylinders are critical components in many mechanical systems, and their failure can lead to significant downtime and repair costs. Understanding the common causes of hydraulic cylinder failure can help in preventative maintenance and troubleshooting. Here are the common causes:

1. Contaminated Hydraulic Fluid

Debris and Particles: Foreign particles in the hydraulic fluid can cause scratches and scoring on the cylinder’s internal surfaces, leading to seal damage and fluid leaks.

Water Contamination: Water in the hydraulic fluid can cause rust and corrosion of the cylinder components, degrading performance and leading to failure.

2. Seal Failure

- Wear and Tear: Seals degrade over time due to normal wear and tear, leading to fluid leakage.
- Improper Installation: Incorrectly installed seals can fail prematurely due to misalignment or damage during installation.

Chemical Attack: Exposure to incompatible fluids or chemicals can cause seals to deteriorate.

3. Piston Rod Issues

Bent or Damaged Rod: A bent or damaged piston rod can cause uneven wear on the cylinder bore and seals, leading to leaks and failure.
Rod Corrosion: Corrosion on the piston rod, often due to environmental exposure, can lead to surface degradation and seal damage.
Rod Pitting: Pitting due to corrosion or wear can compromise the smooth surface needed for proper seal function.

4. Cylinder Tube Damage

Scoring and Scratches: Scoring of the cylinder tube due to contamination or improper operation can cause seal damage and fluid leaks.
Corrosion: Corrosion of the cylinder tube can lead to weakened structural integrity and failure.

5. Overloading and Pressure Issues

Excessive Pressure: Operating the cylinder above its rated pressure can cause component failure, including seals and cylinder tubes.
Pressure Spikes: Sudden spikes in hydraulic pressure, often due to system malfunctions, can cause immediate damage to the cylinder.

6. Improper Maintenance

Lack of Regular Maintenance: Failing to perform regular maintenance, such as changing hydraulic fluid and inspecting seals, can lead to premature cylinder failure.
Improper Repairs: Using incorrect parts or improper techniques during repairs can cause further damage and shorten the cylinder’s lifespan.

7. Misalignment and Side Loading

Misalignment: Misalignment between the cylinder and the load it is moving can cause uneven wear and damage to the piston rod and cylinder tube.
Side Loading: Si
de loading occurs when forces are applied perpendicular to the cylinder’s axis, causing bending and damage to the piston rod and seals.

8. Heat and Thermal Issues

Overheating: Excessive heat can degrade seals and hydraulic fluid, leading to increased wear and potential failure.
Thermal Shock: Rapid temperature changes can cause thermal shock, leading to material fatigue and failure.

9. Improper Assembly and Tolerances

Poor Manufacturing: Cylinders with manufacturing defects or improper tolerances can fail prematurely due to internal stresses or improper operation.
Incorrect Assembly: Assembling the cylinder with incorrect parts or techniques can lead to early failure.

Preventative Measures

Regular Maintenance: Perform regular maintenance, including fluid changes, seal inspections, and alignment checks.
Proper Fluid Management: Use clean, compatible hydraulic fluids and ensure

proper filtration to prevent contamination.

Correct Installation: Ensure components are correctly installed and aligned to avoid misalignment and side loading.
Monitor Operating Conditions: Regularly monitor pressure, temperature, and load conditions to prevent overloading and thermal issues.
Use Quality Parts: Utilize high-quality seals, rods, and other components to ensure longevity and reliability.

By addressing these common causes and implementing preventive measures, the lifespan of hydraulic cylinders can be extended, and unexpected failures can be minimized.
